Profiles for Pavements

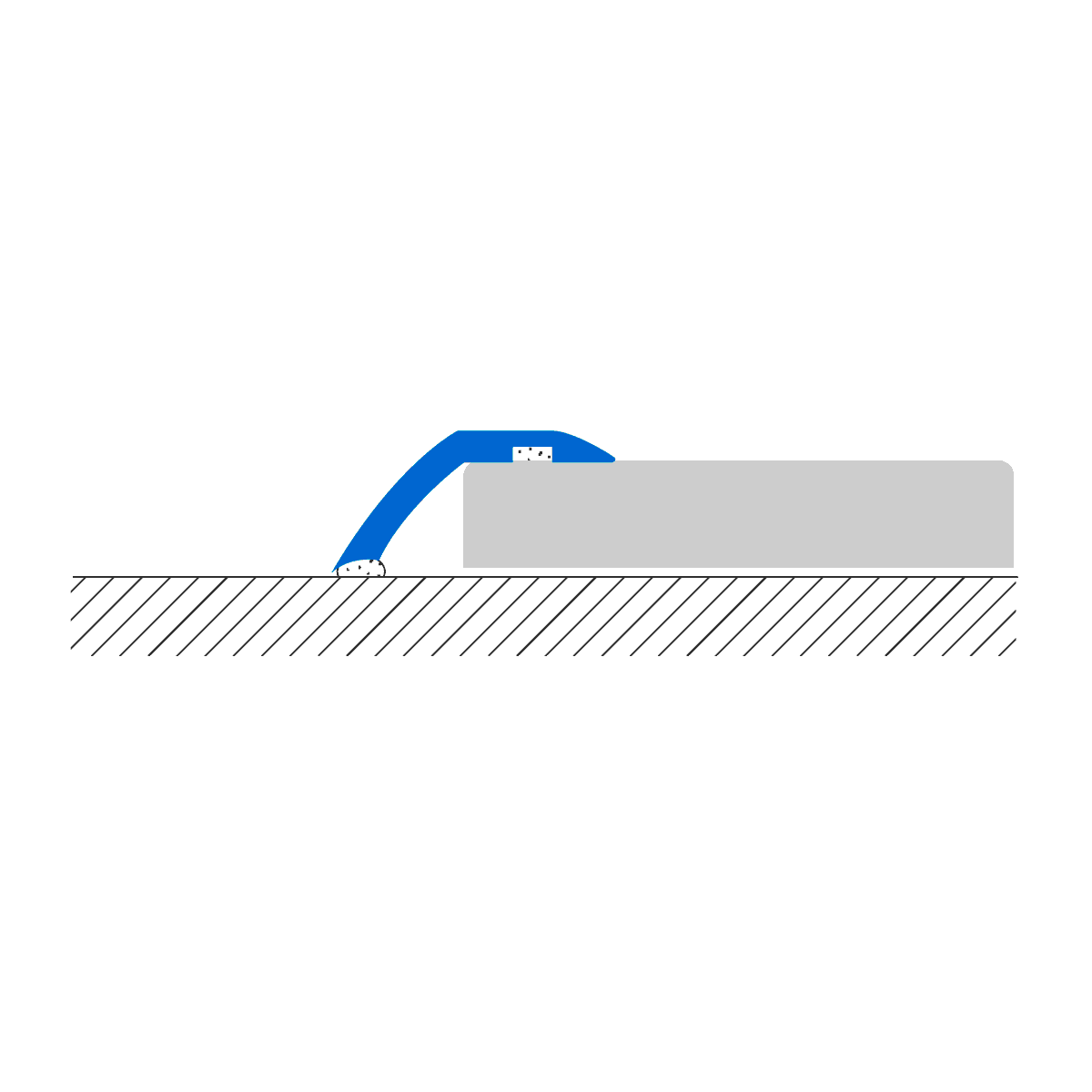

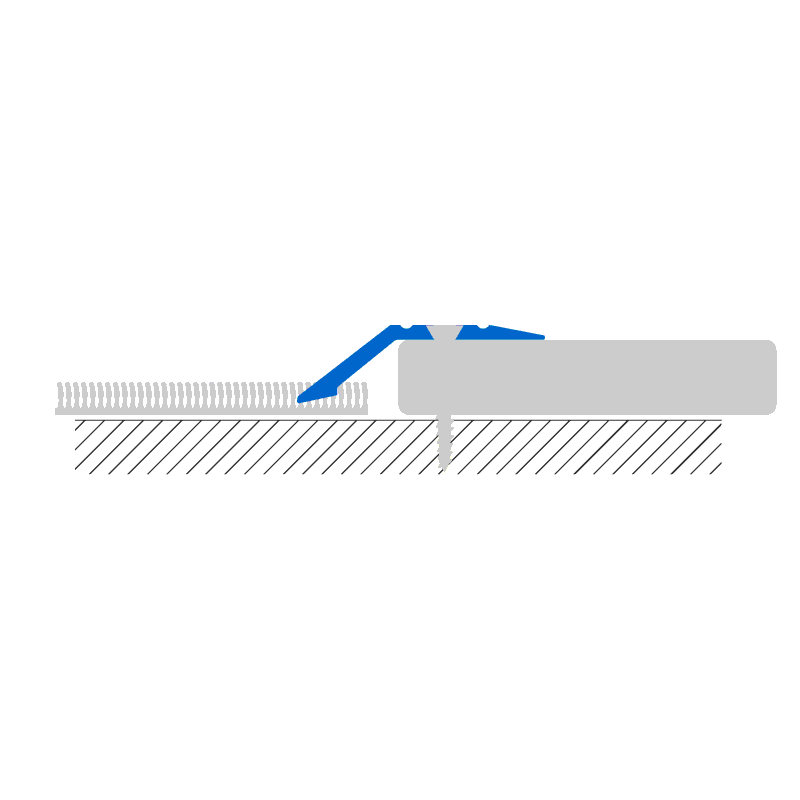

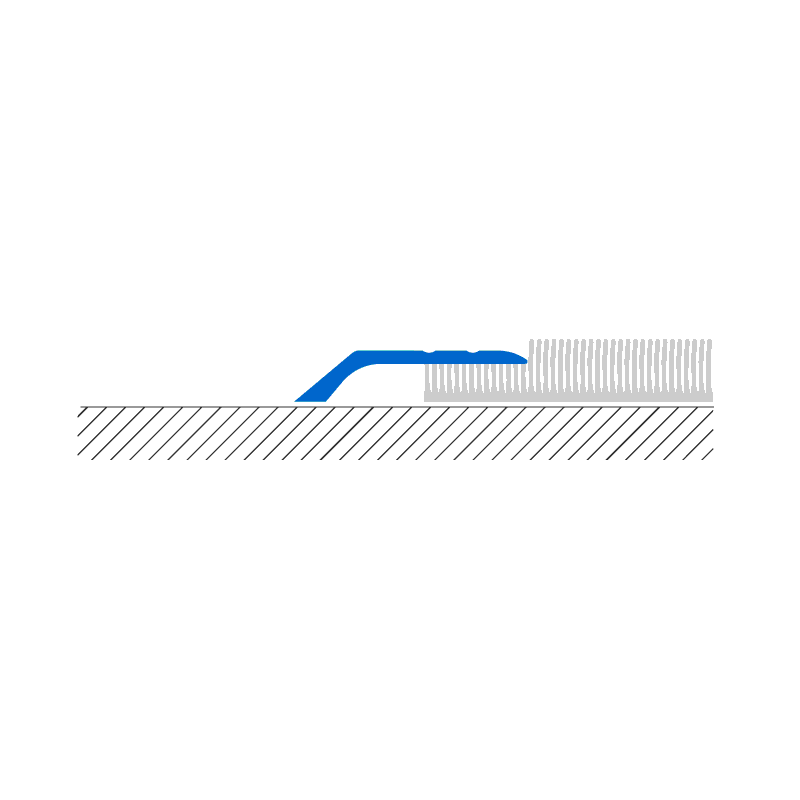

Connection profiles LEVELTEC RP after installation

LEVELTEC RP is a series of profiles designed for terminal or connection functions between floors of different materials and thicknesses. These profiles also cover any chipping of ceramic edges and imperfect cuts of wooden floors or carpets. The LEVELTEC RP series consists of profiles with heights ranging from 4.5 to 12.5 mm, capable of compensating for unevenness of 3 to 14 mm. The profile is usually supplied with high-performance adhesive for waterproofing. They are also available in a perforated version for fixing with screws and plugs.

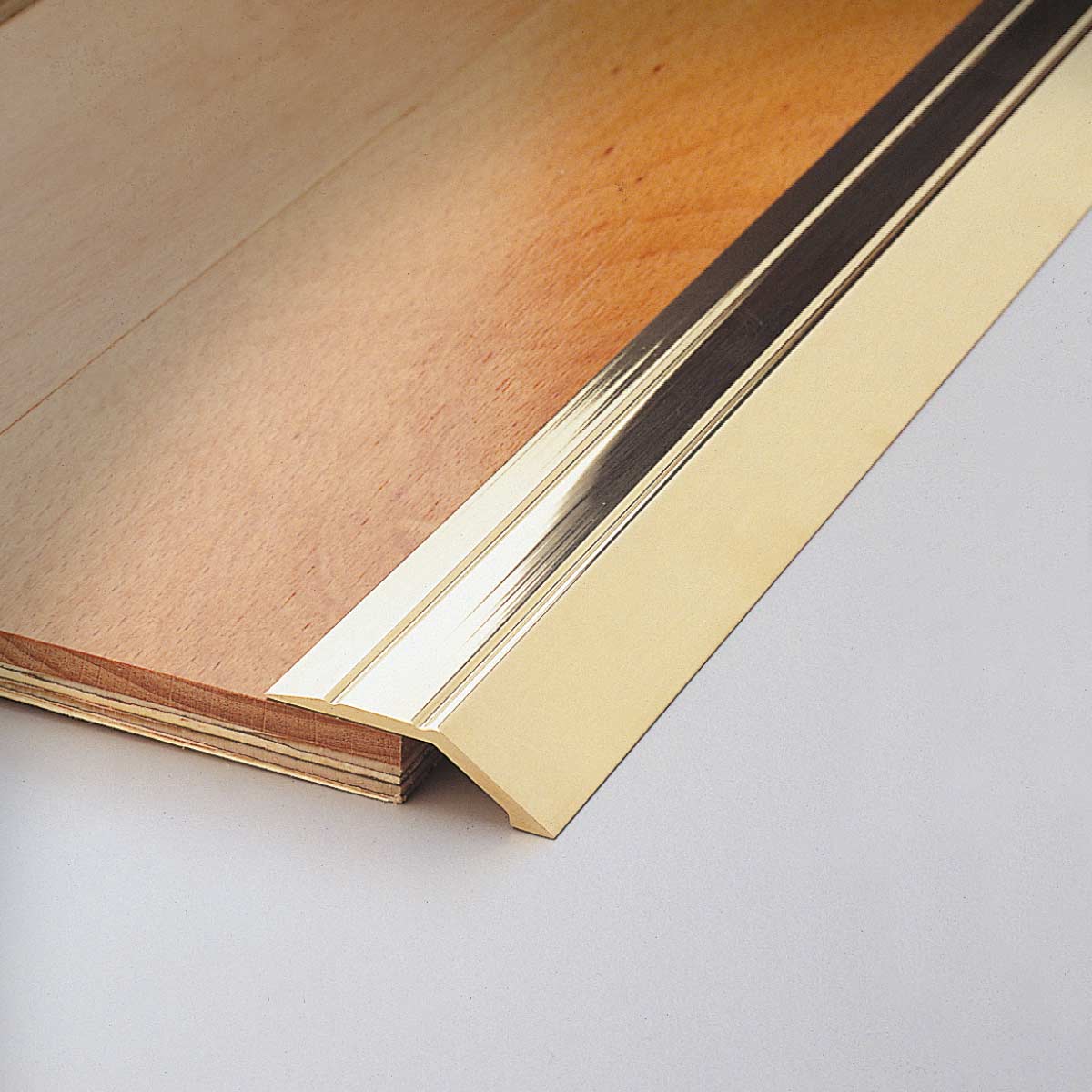

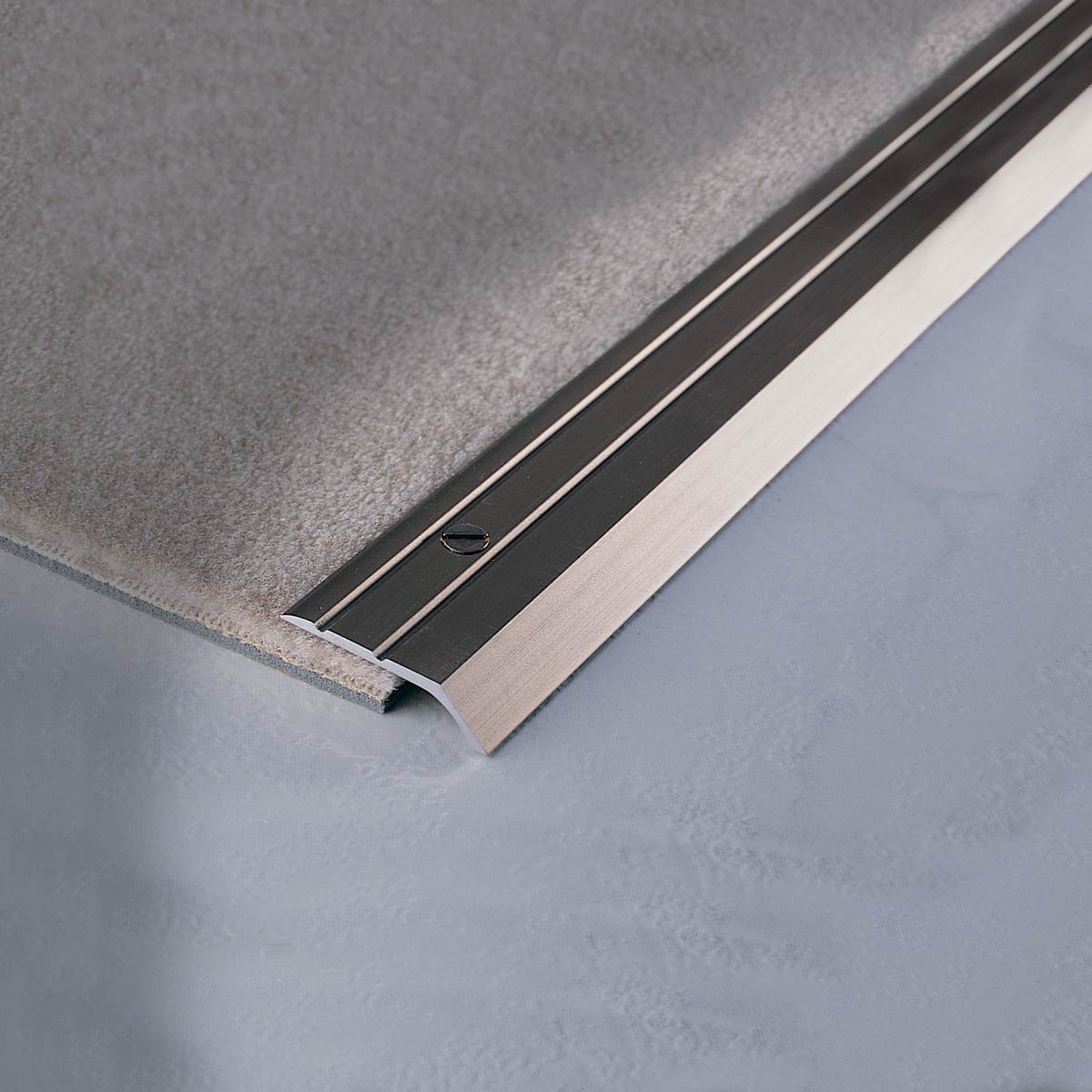

The different sizes of LEVELTEC RP connection profiles

Available in different widths and heights to meet all connection needs between non-coplanar floors, with a smooth or ribbed surface. The thicknesses of the materials used make them suitable for areas with high pedestrian traffic as well. The profiled edges ensure perfect contact with the floor.

How to install LEVELTEC RP profiles

Installation of the self-adhesive version 1) Check that the surface is solid, flat, clean, dry, and degreased. 2) Cut the profile to the required length, remove the protective paper. 3) Apply the profile with even pressure without hammering. Installation version with holes 1) Cut the profile and mark the position of the holes. 2) Insert the plugs and screw them in with suitable countersunk screws for the holes provided in the profile.
